FZ S FI Ver 3.0 Features

Sahana Motors

E20 Fuel Compatible

Sahana Motors

Light Weight Body

Sahana Motors

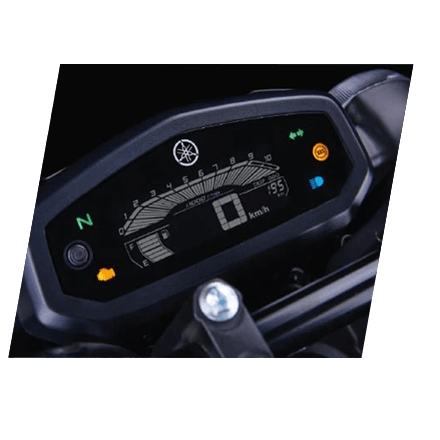

Negative LCD Instrument Cluster

Sahana Motors

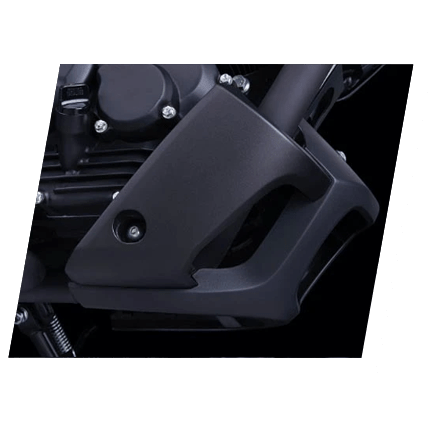

Under Cowl

Specifications

Sahana Motors

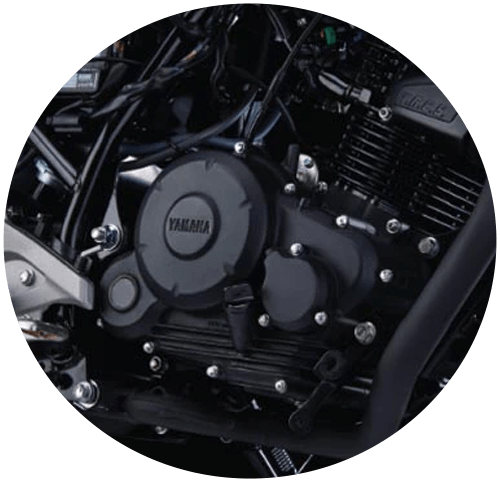

Engine Type

Air cooled, 4-stroke, SOHC, 2-valve

Displacement

149 cc

Bore & stroke

57.3 mm x 57.9 mm

Compression ratio

9.6 : 1

Maximum horse power

9.1 kW (12.4PS) / 7,250 r/min

Maximum torque

13.3 N.m (1.4 kg f.m) / 5,500 r/min

Starting system type

Electric Starter

Sahana Motors

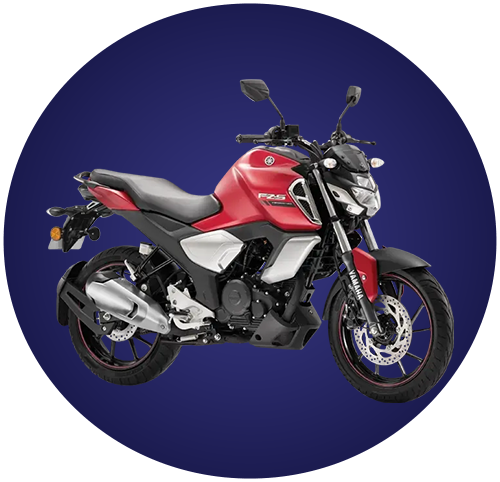

Overall Length X Width X Height

1,990mm/2,000mm(Deluxe) X 780mm X 1,080mm

Seat height

790 mm

Wheelbase

1,330 mm

Minimum ground clearance

165 mm

Kerb Weight

135 kg

Sahana Motors

Tyre size (Front)

100/80-17M/C 52P-Tubeless

Tyre size (Rear)

140/60R17M/C 63P-Radial Tubeless

ABS

Single Channel ABS

Brake type (Front)

Disc Brake(282mm)

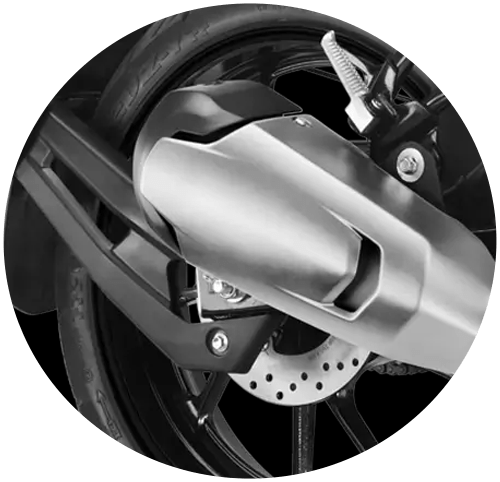

Brake type (Rear)

Disc Brake(220mm)

Sahana Motors

Fuel tank capacity

13 L

Carburetor type /Fuel Supply

Fuel injection

Transmission type

Constant mesh, 5-speed

Brake / Tail Light

12V,21/5W x 1

Suspension type (front/rear)

Telescopic fork / 7-Step Adjustable Monocross Suspension

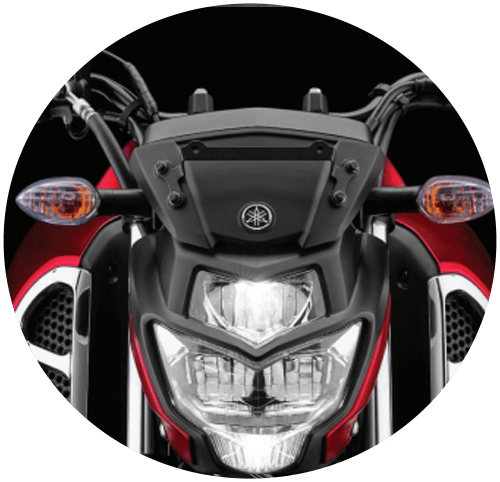

Headlight

LED

Clock

Digital

Speedometer

Digital

Battery

12V

Side Stand engine cut-off switch

Equipped

ECO indicator

Equipped
