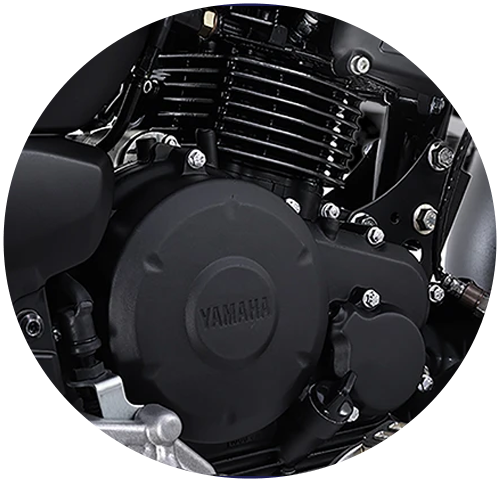

Engine Type
Air cooled, 4-stroke, SOHC, 2-valve
Displacement
149 cc
Bore & stroke
57.3 mm x 57.9 mm
Compression ratio
9.6 : 1
E20 Compatible
Yes
Maximum horse power
9.1 kW (12.4PS) / 7,250 r/min
Maximum torque
13.3 N.m (1.4 kg f.m) / 5,500 r/min
Starting system type
Electric Starter
Ignition
TCI (Transistor Controlled Ignition)
Overall Length X Width X Height
2,020 mm X 785 mm X 1,115 mm
Seat height
810 mm
Wheelbase
1,330 mm
Minimum ground clearance
165 mm
Weight (with oil & a full fuel tank)
139 kg
Tubeless tyre size (Front)
100/80-17M/C 52P Tubeless
Tubeless tyre size (Rear)
140/60R17M/C 63P Radial Tubeless
Brake type (Front)
Disc Brake 282mm with ABS
Brake type (Rear)
Disc Brake 220mm
Fuel tank capacity
10 L
Fuel Supply System
Fuel injection
Clutch
Wet, Multiple-disc
Transmission type
Constant mesh, 5-speed
Front Suspension
Telescopic Fork, 41mm Inner Tube Diameter, with Fork Boot
Rear Suspension
7-Step Adjustable Monocross Suspension
Headlight
Bi-Functional LED
Brake/ Tail light
LED
Auxiliary Lights (DRL)
LED
Clock
Digital, Auto Adjust with Smart Phone Connectivity

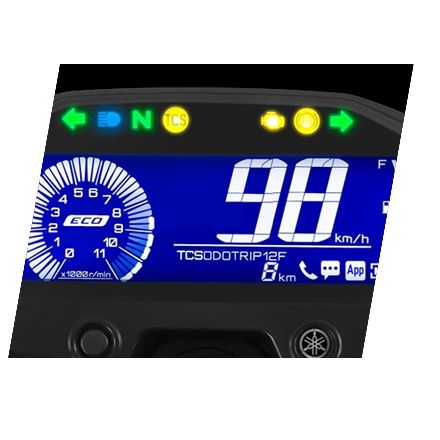

Instrument Cluster
Negative LCD with Smart Phone Connectivity
Battery
12V
Traction Control System
Equipped
ECO indicator
Equipped
Power Socket
Equipped
Bluetooth (Yamaha Motorcycle Connect)*
Equipped
Side Stand Engine Cut-Off Switch
Equipped
