Specifications
![Sahana Motors](/assets/images/scooters/FASCINO/FASCINO-Engine.png)
Engine Type
Air cooled, 4-stroke,SOHC, 2-valve
Displacement
125cc
Bore & stroke
52.4x57.9mm
Compression ratio
10.2:1
Maximum Torque (With Assist Function Working)
10.3 N.m(1.1kgf.m)/5000 r/min
Maximum horse power
6.0kW(8.2PS)/6500r/min
Stop & Start System (SSS)
Equipped
Fuel System
Fuel injection
Starting System Type
Electric starter and kick starter
Transmission type
V-Belt Automatic

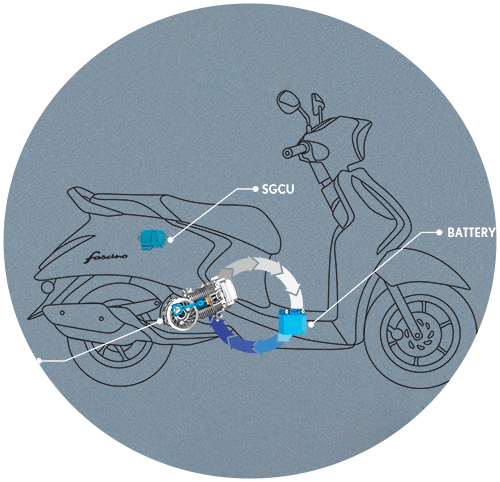

Smart Motor Generator(SMG) System
Equipped
![Sahana Motors](/assets/images/scooters/FASCINO/FASCINO-dimension.png)
Overall Length x Width x Height
1,920 x 685 x 1,150 (Spec. in mm)
Seat height
780mm
Wheelbase
1280mm
Weight (with oil & a full fuel tank)
126kg
Minimum ground clearance
145mm

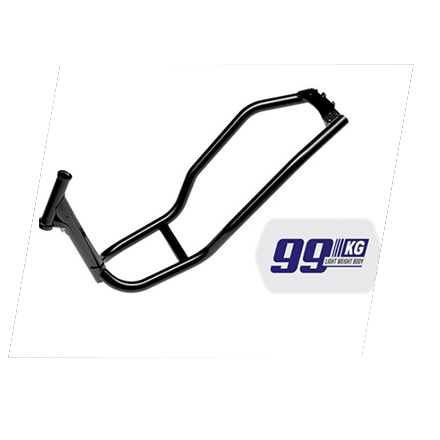

Weight (with Oil & a Full Fuel Tank)
99kg
Fuel tank capacity
5.2L
Underseat Storage
21 L
![Sahana Motors](/assets/images/scooters/FASCINO/FASCINO-chassis.png)

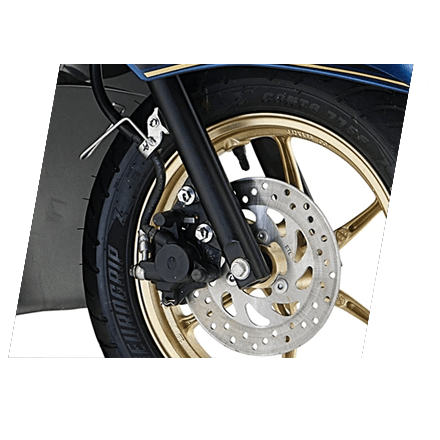

Suspension Type(Front/Rear)
Telescopic Fork/Unit Swing
Tyre Size (Front)
90/90-12 Tubeless
Tyre Size (Rear)
110/90-10 Tubeless
Front Fender
Metal

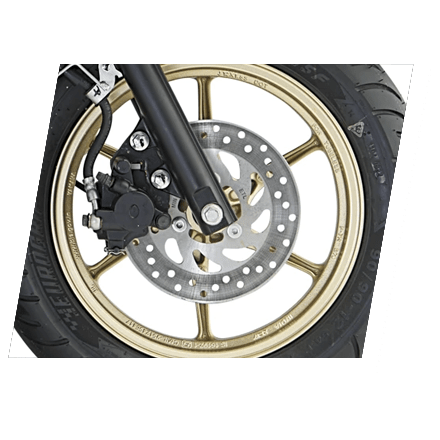

UBS
Equipped
Brake type (Front)
Disc(190mm)/Drum (130mm)
Brake type(Rear)
Drum
![Sahana Motors](/assets/images/scooters/FASCINO/FASCINO-information.png)
Battery
Maintenance free - 12V,5.0 Ah
Ignition system
TCI (Transistor Controlled Ignition)
Headlight (Class C)
Disc: LED Drum: Halogen 12V,35/35W x 1
Brake light/Tail light
Disc: LED Drum: 12V,21/5W x 1
Meter Console
Disc: Digital / Drum : Analogue
Y-Connect
Equipped (Only Disc Variants)
DRL (Daytime Running Light)
LED (Only Disc Variants)
Side Stand Engine Cut-Off Switch
Equipped
