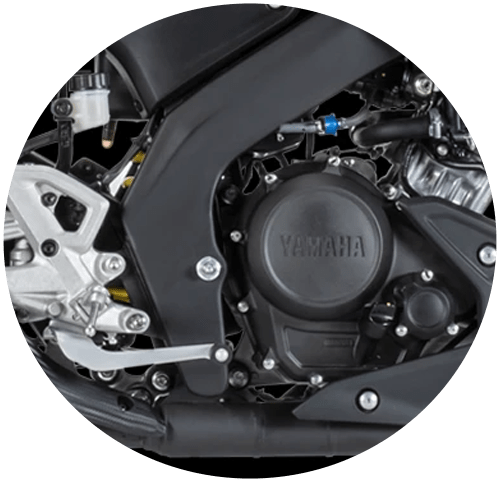

Engine Type
Liquid cooled, 4-stroke, SOHC, 4-valve
Displacement
155cc
Bore & stroke
58.0 mm x 58.7 mm
Compression ratio
11.6 : 1
Maximum horse power
13.5kW(18.4PS)/10000r/min
E20 Compatible
Yes
Maximum torque
14.1N.m(1.4kgf.m)/7500r/min
Clutch Type
Wet, Multiple Disc
Fuel system
Fuel Injection
Transmission type
Constant mesh, 6-speed
Starting system type
Electric starter

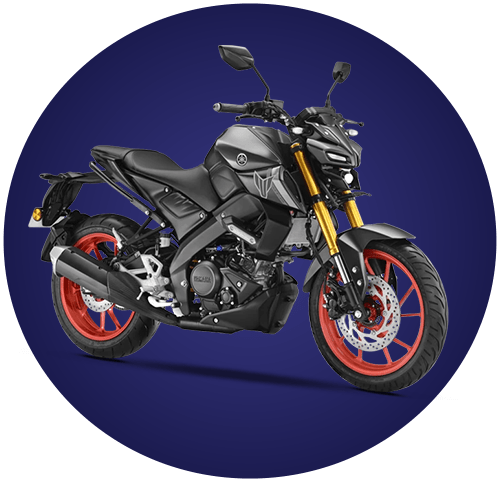

Overall length
2015mm
Overall width
800mm
Overall height
1,070mm
Minimum ground clearance
170mm
Kerb weight (with oil and a full fuel tank)
141 kg
Seat height
810mm
Wheelbase
1,325mm
Inner tube diameter of front fork
37.0mm
Fuel tank capacity
10L

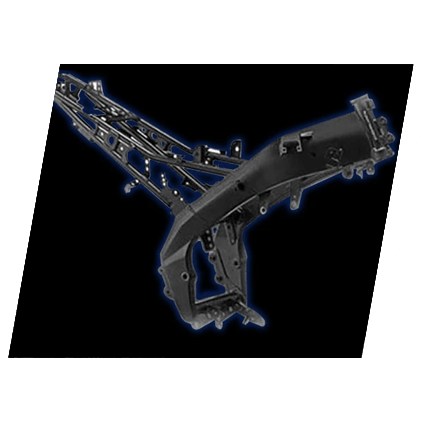

Frame type
Deltabox
Brake type (Front)
Disc Brake (282mm)
Brake type (Rear)
Disc Brake (220mm)

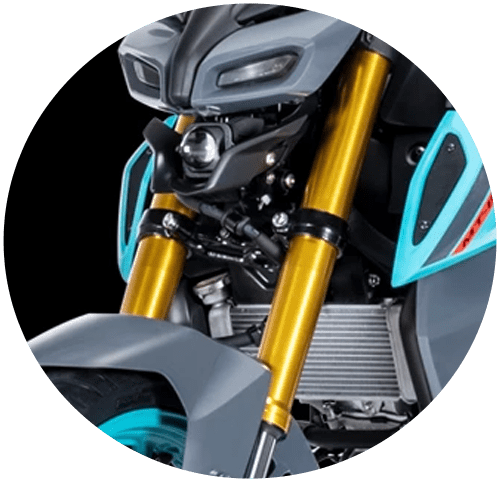

Suspension type (front/rear)
Telescopic upside down Front Fork / Linked-type Monocross suspension
Tyre size (Front)
100/80-17M/C 52P - Tubeless
Tyre size (Rear)
140/70R-17M/C 66H - Radial Tubeless
ABS
Dual Channel ABS
Battery
12 V, 4.0 Ah

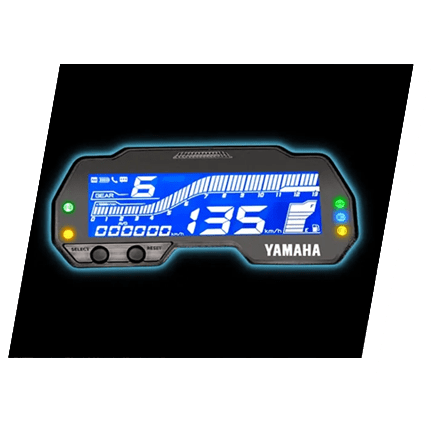

Clock
Digital
Y-Connect(Smartphone Bluetooth connectivity)
Equipped *Not equipped in Metallic Black & Dark Matte Blue
VVA
Equipped
Gear Position Indicator
Equipped
Fuel consumption indicator
Equipped
Shift timing light
Equipped
VVA indicator
Equipped
Sidestand engine cut-off switch
Equipped

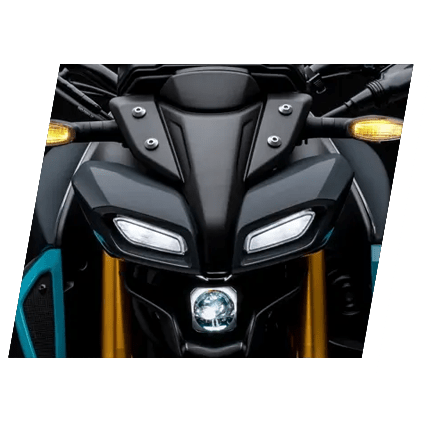

Headlight
LED
Position Light
LED
Brake/Tail light
LED
Speedometer
Digital
Tachometer
Digital
Traction Control System
Equipped
Fuel gauge
Digital
